Shrouds
ConProTec has developed a complete line of high quality, low cost shrouds to be used with STATOMIX static mixers on all meter mix machines. The higher pressures associated with meter, mix and dispensing equipment require the use of STATOMIX shrouds. If a shroud is not used, the mixer housing can expand, allowing the catalyst or resin components to bypass the mixer elements and streamline down the inner housing wall, preventing an optimal mixture.
Additionally, ConProTec recommends the use of STATOMIX shrouds at all times for safety reasons in case the operating pressure exceeds the static mixer's pressure rating.
| Technical Data |
| Material |
Aluminum |
| Finish |
Anodized |
| Thread |
7/8" - 9 or 7/8" - 14 |
| Retention of Elements |
Brazed with nickel base alloy over entire length of element assembly, braze remelt temp. approx. 1796° F (980° C) |
| End Connectors |
Plain Ends |
 |
| Part Number |

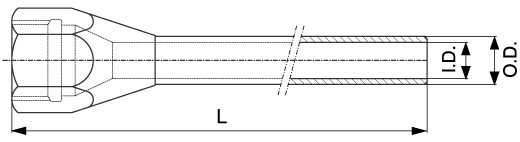

For Mixer Type |
Inner Dia. I.D. (mm) |
Outer Dia. O.D. (mm) |
Length L (mm) |
|
For 7/8" 9 Threads
|
| SH 05-24-09 |
ME or MS 05-24 |
8.2 |
11.5 |
146.0 |
| SH 05-32-09 |
ME or MS 05-32 |
8.2 |
11.5 |
185.0 |
| SH 06-24-09 |
ME or MS 06-24 |
10.2 |
14.0 |
179.5 |
| SH 06-32-09 |
ME or MS 06-32 |
10.2 |
14.0 |
228.5 |
| SH 06-48-09 |
ME or MS 06-48 |
10.7 |
15.0 |
329.0 |
| SH 06-56-09 |
MS 06-56 |
10.7 |
15.0 |
383.7 |
| SH 08-24-09 |
ME or MS 08-24 |
12.2 |
16.0 |
215.0 |
| SH 08-32-09 |
ME or MS 08-32 |
12.2 |
16.0 |
279.0 |
| SH 10-24-09 |
ME or MS 10-24 |
14.2 |
19.0 |
265.5 |
| SH 10-32-09 |
ME or MS 10-32 |
14.2 |
19.0 |
341.5 |
| SH 13-24-09 |
ME or MS 13-24 |
17.2 |
23.0 |
280.5 |
| SH 13-32-09 |
ME or MS 13-32 |
17.2 |
23.0 |
365.5 |
| SH 10-44-09 |
ME or MS?1012-0832 |
14.2 - 12.2 |
19.0 - 16.0 |
401.0 |
| SH 13-44-09 |
ME or MS 1312-1032 |
17.2 - 14.2 |
23.0 - 19.0 |
503.0 |
|
For 7/8" 14 Threads
|
| SH 05-24-14 |
ME or MS 05-24 |
8.2 |
11.5 |
146.0 |
| SH 05-32-14 |
ME or MS 05-32 |
8.2 |
11.5 |
185.0 |
| SH 06-24-14 |
ME or MS 06-24 |
10.2 |
14.0 |
179.5 |
| SH 06-32-14 |
ME or MS 06-32 |
10.2 |
14.0 |
228.5 |
| SH 06-48-14 |
ME or MS 06-48 |
10.7 |
15.0 |
329.0 |
| SH 06-56-14 |
MS 06-56 |
10.7 |
15.0 |
383.7 |
| SH 08-24-14 |
ME or MS 08-24 |
12.2 |
16.0 |
215.0 |
| SH 08-32-14 |
ME or MS 08-32 |
12.2 |
16.0 |
279.0 |
| SH 10-24-14 |
ME or MS 10-24 |
14.2 |
19.0 |
265.5 |
| SH 10-32-14 |
ME or MS 10-32 |
14.2 |
19.0 |
341.5 |
| SH 13-24-14 |
ME or MS 13-24 |
17.2 |
23.0 |
280.5 |
| SH 13-32-14 |
ME or MS 13-32 |
17.2 |
23.0 |
365.5 |
| SH 10-44-14 |
ME or MS?1012-0832 |
14.2 - 12.2 |
19.0 - 16.0 |
401.0 |
| SH 13-44-14 |
ME or MS 1312-1032 |
17.2 - 14.2 |
23.0 - 19.0 |
503.0 |
|
