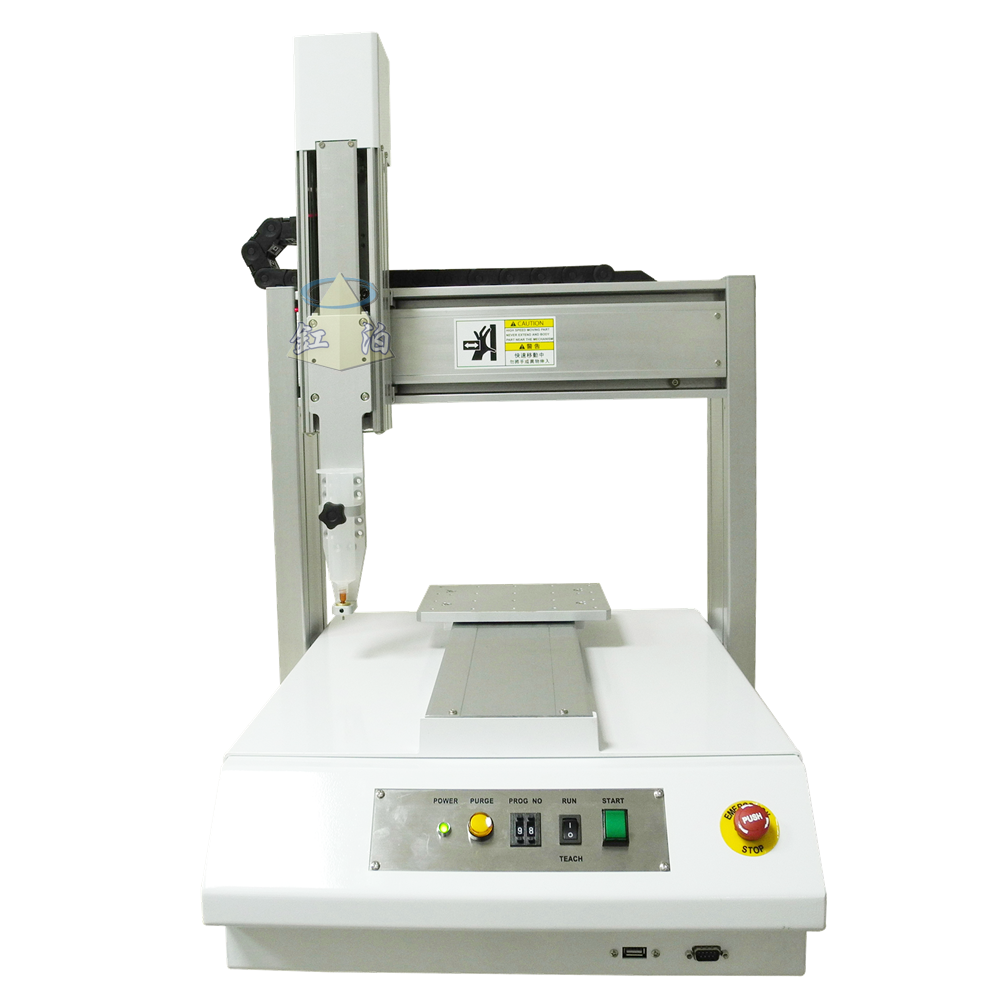

GB-5303 3-Axis Automatic Adhesive Dispensing Robot

► GB-5303 3-Axis Dispensing Robot



　▐　Specialty




Suitable for All Kinds of Products

Graphic Tutorial & Simplified Steps

Built-in Industrial Computer

AutoCAD Graphic Importable

Easy Maintenance




　▐　Function




Dispenser Tip Automatic Position

I/O Port Automatic Systems Allowed

Dispensing Procedure Portable by USB

1 Year Standard Warranty

PTP/CP 3D Dispensing Routes





　▐　Application Industry




LCD COG Coating

LED Sealing Coating

Automotive Sealing Coating

COB Sealing Coating

Conductive Paste Coating

Aerospace Industry

Semiconductor Dispensing





　▐　Specification



　　Contact us to tell us your requirements, we will get back to you ASAP.



Function

GB-5303

Working Range

X / Y / Z

300 / 300 / 100 (mm)

Max Load

Axis-Y / Axis-Z

10 kg / 15 kg

Speed

XY / Z

0.1 - 600 / 500

Resolution

0.01 mm / Axis

Repetitive Positioning Accuracy

± 0.02 mm / Axis

Program Capacity

100 Sets (4000 points / Set, Importable)

Program Display

Teach Pendant LCD

Motor System

High Resolution Stepping Motor

Control Method

PTP & CP

Interpolation Function

3 Axis

Programming Method

Tutorial Case / PC

I/O Signals Port

10 Inputs / 10 Outputs

External Control Interface

Ethernet

Power Supply

AC110 ~ 220V 600W

Working Temperature

-10 to 50 °C

Working Relative Humidity

20% - 90% No Condensation

Dimensions

W x D x H

495 x 600 x 750 (mm)

Robot Weight

45 kg
