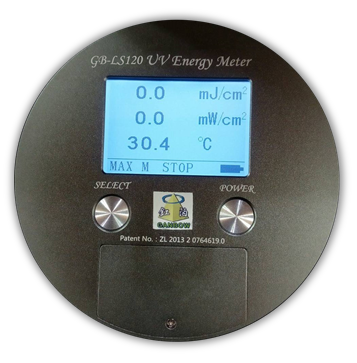

UV Mouse Dosimeter

► GB-LS120 UV Mouse Dosimeter
▐　Specialty

The Dosimeter-Radiometer measures:

　 - UV Dose (energy): 0~9999 mw / cm²
　 - UV Irradiance(Joules): 0~999999 mj / cm²
　 - Temperature: 0~120°C

The Dosimeter-Radiometer is traceable to the National Institute of Standards and Technology (NIST). Spectral correction coefficients are implemented to use the Dosimeter-Radiometer with a broad band UV lamps. Units of measurement for the UV Dose (energy) are Joules per square centimeter (J/cm 2 ) and units for UV Irradiance are Watts per square centimeter (W/cm 2 ).


The LCD display has 2 modes of operation:

 　- Mode 1: Instant Mode, active while measuring, showing the current measurement during readings (the digits and units of measurement are blinking).

　 - Mode 2: Final Mode, when current measurements are finished and shows the results of last finished measurements, only the units of measurement blinks.

A simple one-button mode of operation can be used if the customer needs to measure only the dose and a maximum irradiance after each single reading.


▐　Specification
Contact us to tell us your requirements, we will get back to you ASAP.

UV Irradiance Range
0-9999 mW / cm²
UV Energy Range
0-999999 mJ / cm²
Spectral Response
UVA: 250 - 420nm
Calibration Accuracy
(NIST traceable)
±5% Typical, 10% Max
Operation Temperature
0 - 85°C
Dimension
L x H x H
160 x 110 x 13 (mm)
Weight
300 g
Power source
Rechargeable
