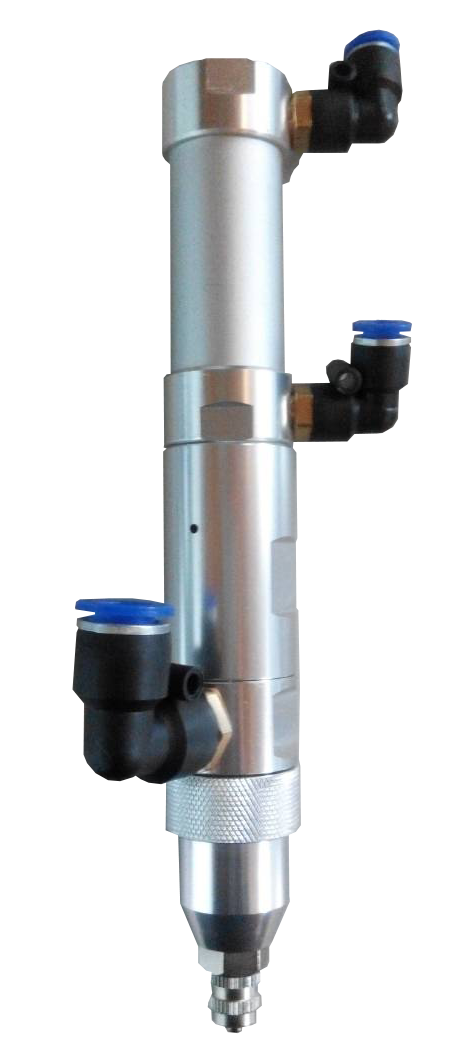

GB-2850 Large Flow Valve

► GB-2850 Large Flow Valve

　▐　Specialty & Function



Low to Medium Viscosity Fluid
Suck-back Function available
Adjustable Flow Control
Positive Shut-off
Application:

      RTV Silicone, Lubricant, Chloroprene Adhesive, PVA, Epoxy





　▐　Specification

　　Contact us to tell us your requirements, we will get back to you ASAP.


Function

GB-2850

Operating Air Source

4~7kg / cm²

Min Shot Volume

0.01 ml

Viscosity Range

1~1,000,000 cps

Wet Body Material

SUS 304, Aluminum Alloy (Anodized)

Fluid Inlet Port

1/4'' NPT female

Overall Dimensions

￠30 × (H) 210

Weight

0.332 kg
