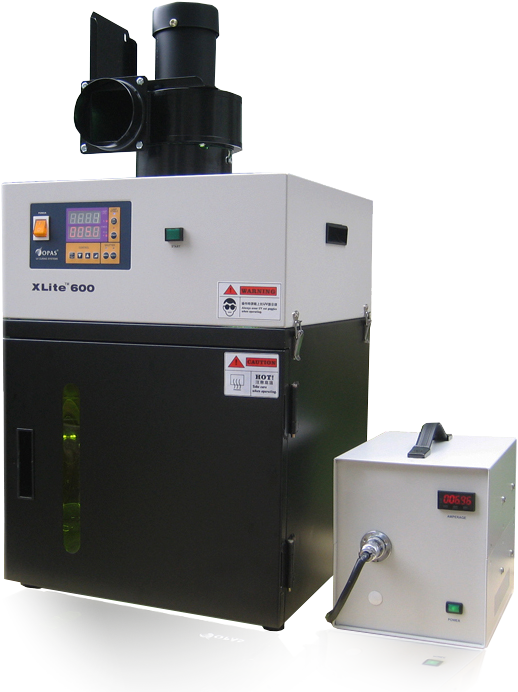

XLite-600 UV Curing Chamber

► GB-3501 UV Curing Drawer

　 ▐　Specialty

  XLite600 UV Chamber equips an electronic control shutter which blocks the UV light       when the curing time is up. It is designes for the curing of UV adhesive, UV lacquer, or   UV ink. The high efficient UV lamp make the UV resins cured in few seconds. You can   change the position of the product by adjusting the place inside the chamber.

　•　Curing Timer Available
　•　Control Panel Available
　•　Auto Shutter System
　•　Adjustable Lamp Height
　•　Overheat Protection Design


▐　Description & Specification
Contact us to tell us your requirements, we will get back to you ASAP.

Model
XLite 600F
XLite 600G
XLite 600P
XLite 600Q
Voltage
220 VAC 50 / 60 HZ Single Phase, Max. Current: 20A
Lamp Spec
1KW TFLamp
1KW TGLamp
1KW TGP Lamp
1KW TQCLamp
Max. UV intensity
150 – 200 mW / cm²
60 – 80 mW / cm²
50 – 70 mW / cm²
Main Wavelength
254nm / 365 nm
365nm
254 nm / 365 nm
Average Lamp Life
2000 hr
1000 hr
Dimension
W xH x D
460x 630 x 450 (mm)
Inside Space
Dimension
W xH x D
400 x 400 x 400 (mm)
Total Weight
40 kg
25 kg
Timer Set
0.1 sec – 999.9 min
Exhaust
Blower on the top
Safety Device
Overheat Protection Device
Digital Ammeter
Check the lamp status
